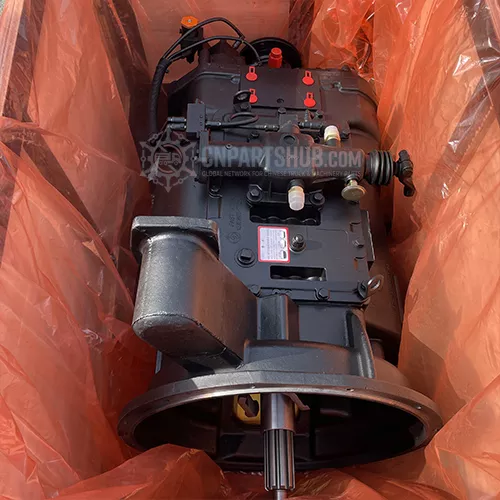

Original 12JSDX240TA Transmission Assembly Truck Construction Machinery Gearbox For FAST GEAR
Home » Products » Transmission Parts » Original 12JSDX240TA Transmission Assembly Truck Construction Machinery Gearbox For FAST GEAR
Transaction Details
| Place of Origin: | China |
| Brand Name: | For Fast Transmission |
| Product Name | Transmission |

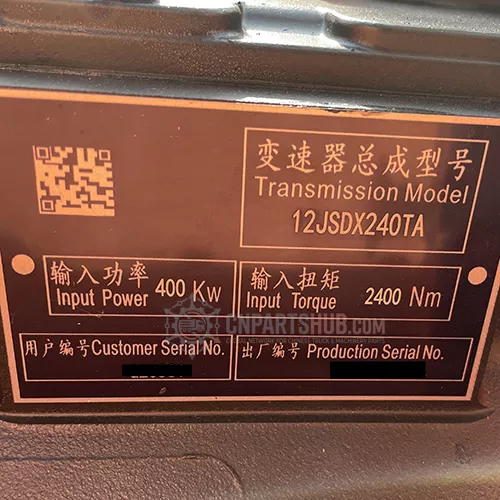

| Model Number: | 12JSDX240TA |
| Certification: | ISO CCC |
| Quality | Original/Replacement/OEM |
| Minimum Order Quantity: | 1 PCS |
| Delivery Time: | In stock |
| Type Of Shipping | According to your request |
Customers Also Viewed
Product Description
Product Superiority:
- All-Aluminum Alloy Casing: Cuts weight by 110+ kg to improve fuel economy.
- Heavy-Duty Auxiliary Box: Large center-distance helical gears enhance strength, durability, and mechanical efficiency.
- Twin Countershafts: Unique power-split architecture minimizes component stress.
- Dual-Cone Main Synchronizer: Lock-ring design provides high capacity and effortless gear engagement.
- High-Reliability Auxiliary Synchronizer: Heavy-duty lock-pin inertial mechanism with non-metallic friction linings.
- High Launch Torque: Large first-gear ratio ensures superior climbing capability under full load.
- Close-Ratio Steps: Optimized gear spacing maintains ideal engine RPM for lower fuel consumption.
| Part Name | Transmission assembly |
| Part Number | 12JSDX240TA |
| Brand | For Fast Transmission |
| Net Weight | 397kg |
| Condition | New |
| Quality | Original |
| Part Type | Transmission parts |
| Application | Truck, special vehicle, truck crane. Various types of vehicles such as railway track cars |
| Purpose | For replace/Repair |
| Warranty | 6 months |
| PARAMETERS | |
| Input Torque (NM) | 2200/2400 |
| input power (KW) | 380/400 |
| Max RPM | 2600 |
| overall length(MM) | 983.4 |
| Weight and material (KG) | 397(iron)/292(aluminium) |
| Oil filling level (L) | 16/16.5 |
| SPEED RATIO OF EACH GEAR | |
| Forward gear 1 | 12.1 |
| Forward gear 2 | 9.52 |
| Forward gear 3 | 7.31 |
| Forward gear 4 | 5.71 |
| Forward gear 5 | 4.46 |
| Forward gear 6 | 3.48 |
| Forward gear 7 | 2.71 |
| Forward gear 8 | 2.13 |
| Forward gear 9 | 1.64 |
| Forward gear 10 | 1.28 |
| Forward gear 11 | 1.00 |
| Forward gear 12 | 0.78 |
| Reverse gear 1 | 11.57 |
